Quantized SDPA

Overview

Quantized Scaled Dot-Product Attention (SDPA) applies lower precision technologies to the SDPA pattern to reduce memory bandwidth and improve computation throughput during inference. In quantized SDPA, the input Query, Key, and Value tensors are stored in lower precision data types such as u8 / s8 (INT8) or f8_e4m3 / f8_e5m2 (FP8) along with scales and zero-points data. Both INT8 and FP8 quantized SDPA share the same pattern structure, differing only in the data types used for the quantized tensors. This approach is commonly used in inference scenarios where reduced precision is acceptable for improved performance.

The notations used in this topic are:

• N: The mini-batch size.

• H: The number of multi-head.

• S: The sequence length.

• D: The size of each head (head size).

Quantized SDPA Pattern

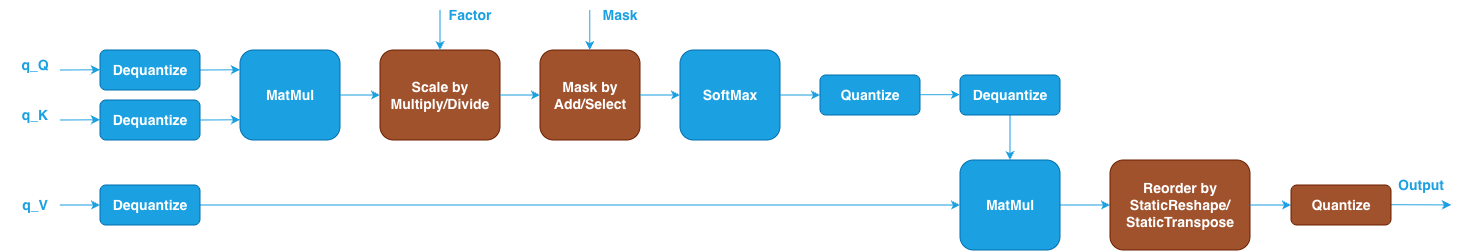

The quantized SDPA pattern is defined as a directed acyclic graph (DAG) using oneDNN Graph API. oneDNN extends the floating-point SDPA pattern by inserting Dequantize and Quantize operations around the core SDPA computations. The supported pattern is as follows. The blue nodes are required while the brown nodes are optional.

oneDNN Graph API leverages inserting Quantize and Dequantize operations around floating-point operations to express the corresponding lower precision computation. Compared to a typical floating-point SDPA pattern, there are a few differences:

1. Two Dequantize operations are applied to the quantized Query (q_Q) and Key (q_K) tensors before the dot products between Query and Key. See Dequantize operation in Graph API.

2. After SoftMax, a Quantize operation converts the intermediate f32 probabilities to the quantized type, followed by a Dequantize operation to convert back to f32 for the second MatMul. This Quantize-Dequantize pair models the quantization loss between the two MatMul operations. See Quantize operation in Graph API.

3. A Dequantize operation is applied to the quantized Value (q_V) tensor before the second MatMul.

4. A Quantize operation is applied after the second MatMul to produce the final quantized output.

5. The Scale and Mask nodes remain optional and follow the same definition as in the floating-point SDPA pattern.

Quantization Attributes

Each Quantize and Dequantize operation requires the following attributes:

• qtype : The quantization type. Currently per_tensor is supported for quantized SDPA.

• scales : A vector of scaling factors used for the quantization. It must contain single value when qtype is set to per_tensor.

• zps : A vector of zero-points used for the quantization. It is optional and can be specified when asymmetric quantization is needed. Once set, it must contain a single value when qtype is set to per_tensor.

Data Types

oneDNN supports the quantized SDPA pattern with the following quantized data types for Query, Key, Value, and output. You can specify the data type via the input and output data type fields of logical tensors for each operation. The definition of the data types and support status on different CPU and GPU platforms follow the general description in Data Types.

Query	Key	Value	Dst
u8	u8	u8	u8 / f32
s8	s8	s8	s8 / f32
f8_e4m3	f8_e4m3	f8_e4m3	f8_e4m3 / f32
f8_e5m2	f8_e5m2	f8_e5m2	f8_e5m2 / f32

Notes:

• The intermediate computation is always performed in f32.

• All Dequantize outputs and Quantize inputs use f32 data type.

• The Scale and Mask tensors use f32 data type.

• The final output can be f32 by not specifying the last Quantize operation.

Implementation Limitations

1. Similar to floating-point SDPA, oneDNN primitive-based quantized SDPA is implemented as the reference implementation on both Intel Architecture Processors and Intel Graphics Products. The quantized SDPA patterns are implemented with quantized matmul (with post-ops) and f32 softmax primitives. The reference implementation requires memory to store the intermediate results of the dot products between Query and Key which takes \(O(S^2)\) memory. It may lead to out-of-memory error when computing long sequence length input on platforms with limited memory.

2. The quantized SDPA patterns functionally support all input shapes meeting the shape requirements of each operation in the graph.

3. CPU

   • Optimized implementation for inference is available for 4D Q/K tensors with shape defined as (N, H, S, D) and V tensor with shape defined as (N, H, S, D).

   • Optimized implementation for inference is available for OpenMP runtime and Threadpool runtime on Intel Architecture Processors.

   • Specifically for OpenMP runtime, the optimized implementation requires N * H > 2 * thread number to get enough parallelism.

4. GPU

   • Only primitive-based implementation is provided.

Example

oneDNN provides a quantized SDPA example demonstrating how to construct both INT8 and FP8 quantized SDPA patterns with oneDNN Graph API on CPU and GPU. The example covers u8, s8, f8_e4m3, and f8_e5m2 data types.
