Softmax Fusion Patterns#

Overview#

oneDNN supports various SoftMax fusion patterns to optimize performance and reduce memory bandwidth requirements. This document describes the supported fusion patterns for SoftMax.

Pattern Structure#

oneDNN defines floating-point SoftMax fusion patterns as follows. The blue nodes are required when defining a SoftMax fusion pattern while the brown nodes are optional.

Softmax pattern

  1. SoftMax Operation : Performs the softmax function for the src tensor. See the SoftMax operation in the Graph API for more details.

  2. Epilogue Subgraph : Optional and can include the following operations:

    epilogue subgraph

    • N=20, 0 to 20 Binary or Unary operations are supported in the epilogue subgraph.

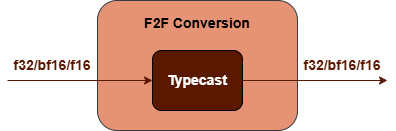

  3. F2F Conversion Subgraph : Converts the output tensor from floating-point to another floating-point. It is constructed by a TypeCast operation.

    f2f_conversion_subgraph

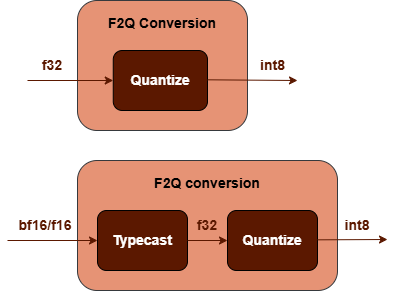

  4. F2Q Conversion Subgraph : Converts the output tensor from floating-point to quantized data type. It is constructed by a Quantize operations in Graph API.

    f2q_conversion_subgraph

  5. If multiple optional subgraphs are present, they must follow the order defined in the pattern structure.

Data Types#

Refer to the document of each operation for the supported data types.

If any optional subgraph is present, the output data type of SoftMax must be f32. With that, the F2F conversion subgraph converts the output from f32 to f16 or bf16 and the F2Q conversion sugraph quantizes the output from f32 to int8.

The definition of data types and their support status on different CPU and GPU platforms follow the general description in the Data Types Guide.
