Convolution Fusion Patterns

Overview

oneDNN supports both floating-point and quantized Convolution fusion patterns to optimize performance and reduce memory bandwidth requirements. This document describes the supported floating-point fusion patterns for Convolution. For quantized Convolution fusion patterns, refer to Quantized Convolution Fusion Patterns for more details.

Pattern Structure

oneDNN defines floating-point Convolution fusion patterns as follows. The blue nodes are required when defining a Convolution fusion pattern while the brown nodes are optional.

1. Convolution Operation : Performs convolution between the src and weights tensors. The bias tensor is optional. See the Convolution operation in the Graph API for more details.

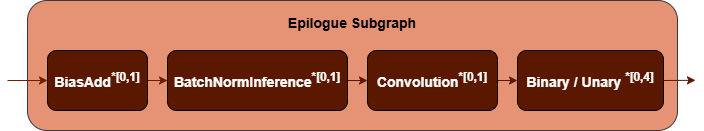

2. Epilogue Subgraph : Optional and can include the following operations:

   • BiasAdd operation.

   • BatchNormInference operation.

   • Convolution operation.

   • Binary and Unary operations: refer to the Note in Fusion Patterns.

   Combination Rules:



   • BiasAdd : If present, must be the first op in the epilogue subgraph and can only appear once.

   • BatchNormInference : If present, must precede Binary or Unary operations and can only appear once.

   • Convolution : If present, is a Depthwise Convolution which can only be fused with 1x1 Convolution and can only appear once.

   • 0 to 4 Binary or Unary operations are supported in the epilogue subgraph.

3. F2F Conversion Subgraph : Converts the output tensor from floating-point to another floating-point. It is constructed by a TypeCast operation.



Data Types

oneDNN supports the following combinations of data types for src, weights, bias and dst:

src	weights	bias	dst
f32,bf16,f16	f32,bf16,f16	f32,bf16,f16	f32,bf16,f16

The definition of the data types and support status on different CPU and GPU platforms follow the general description in the Data Types Guide.

Implementation Limitations

1. Convolution as a post op (Depthwise Convolution) is not supported on GPU.

2. Convolution and BatchNormInference cannot co-exist in the epilogue subgraph.

3. F2F Conversion Subgraph used for dst tensor only supports bf16 to f32 data type conversion.

Example

oneDNN provides a CPU Convolution example and a GPU Convolution example demonstrating how to construct a typical floating-point Convolution pattern with oneDNN Graph API on CPU and GPU.
